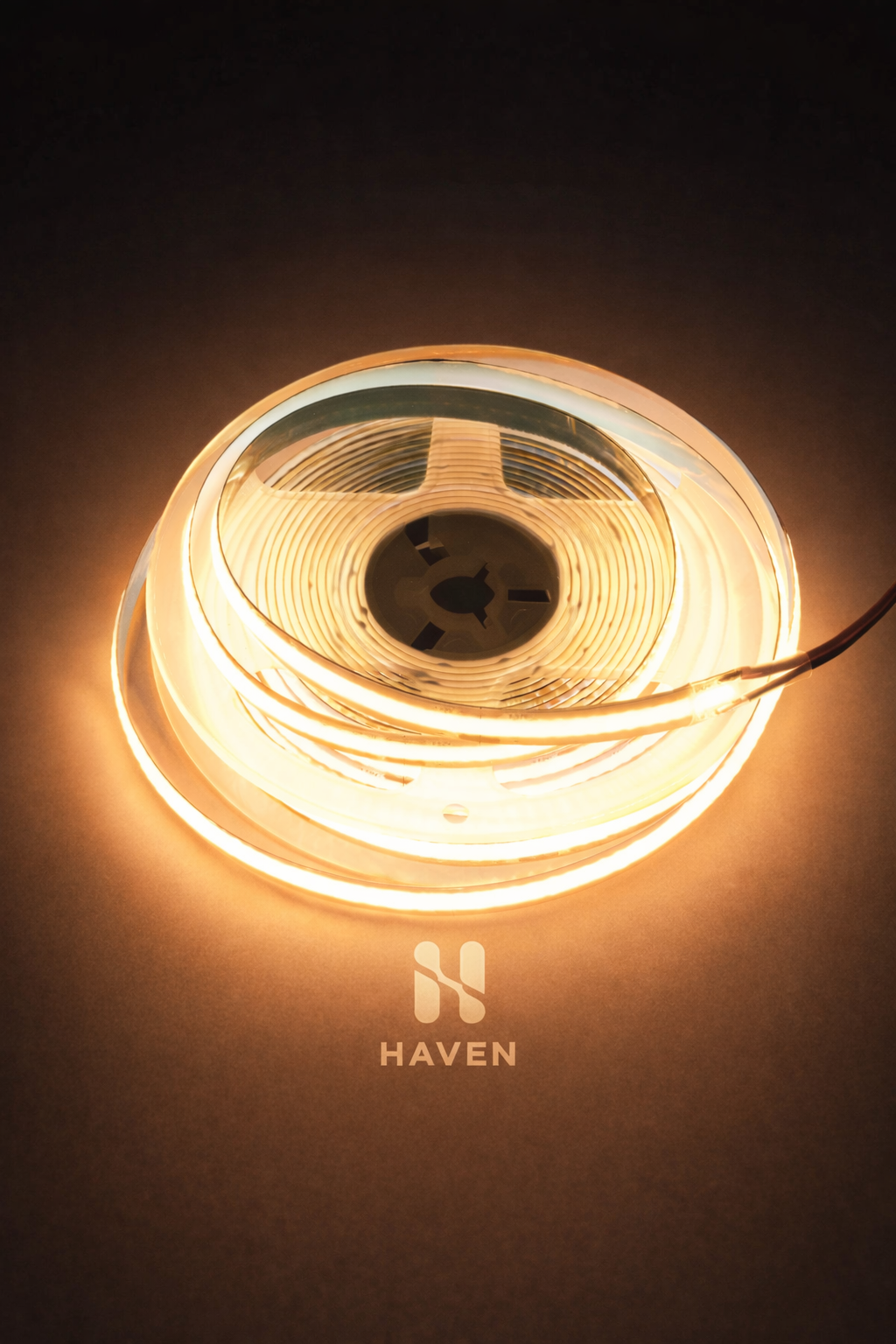

HAVEN High-Density COB LED Strip Light

Ultra-High Density COB LED Strip Light

Seamless Light. Clean Design. Professional Finish.

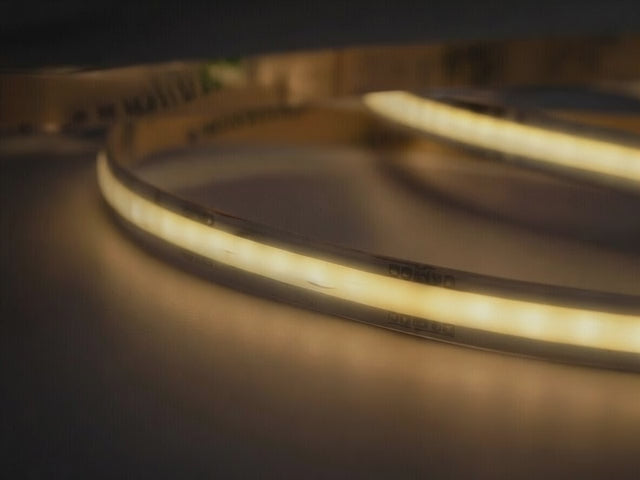

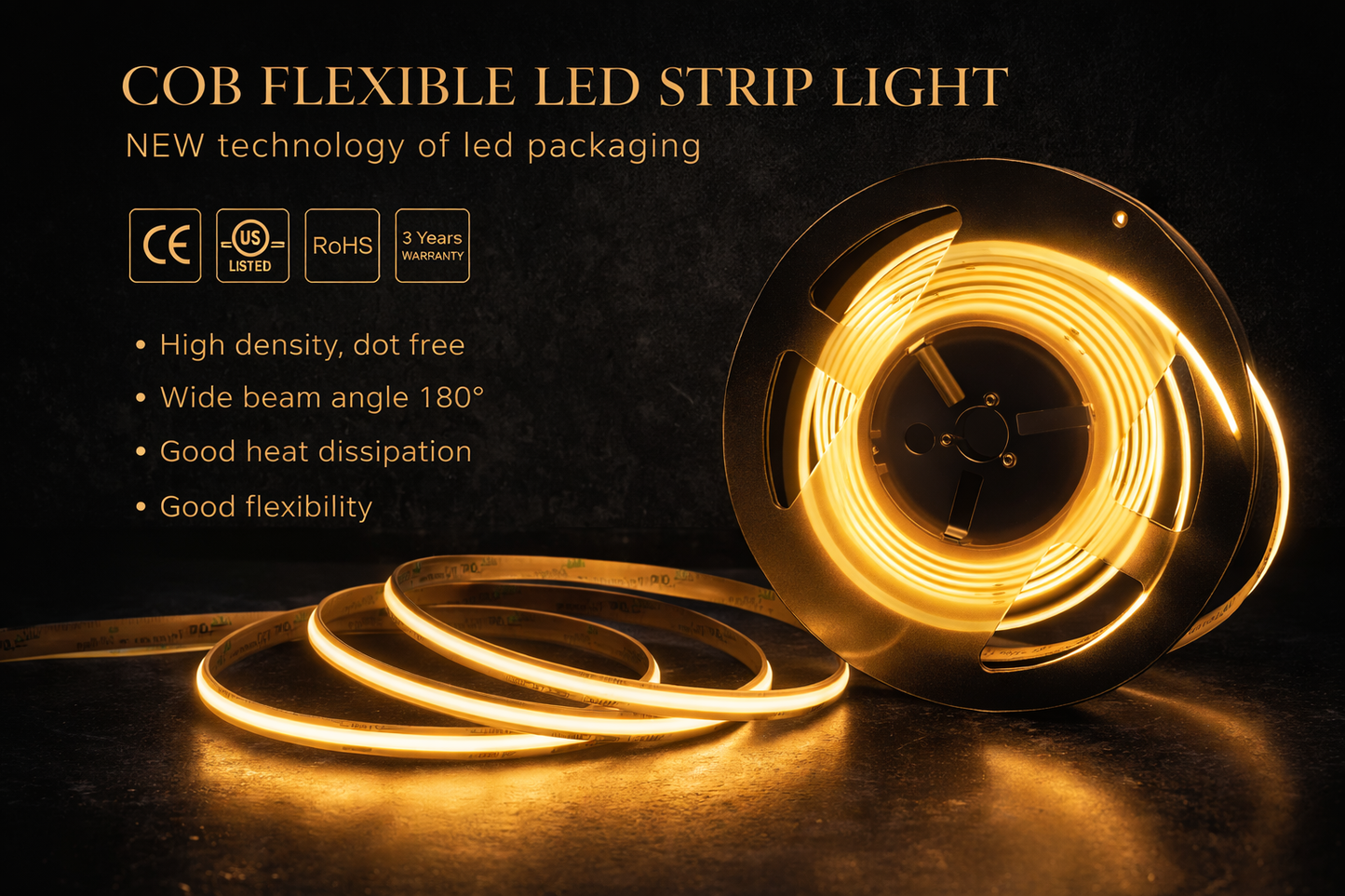

This COB LED strip light delivers a smooth, continuous line of illumination with no visible LED dots or dark gaps. Using advanced Chip On Board (COB) technology, hundreds of micro LEDs are packed tightly together to create soft, uniform lighting that looks clean and modern even when the strip itself is visible.

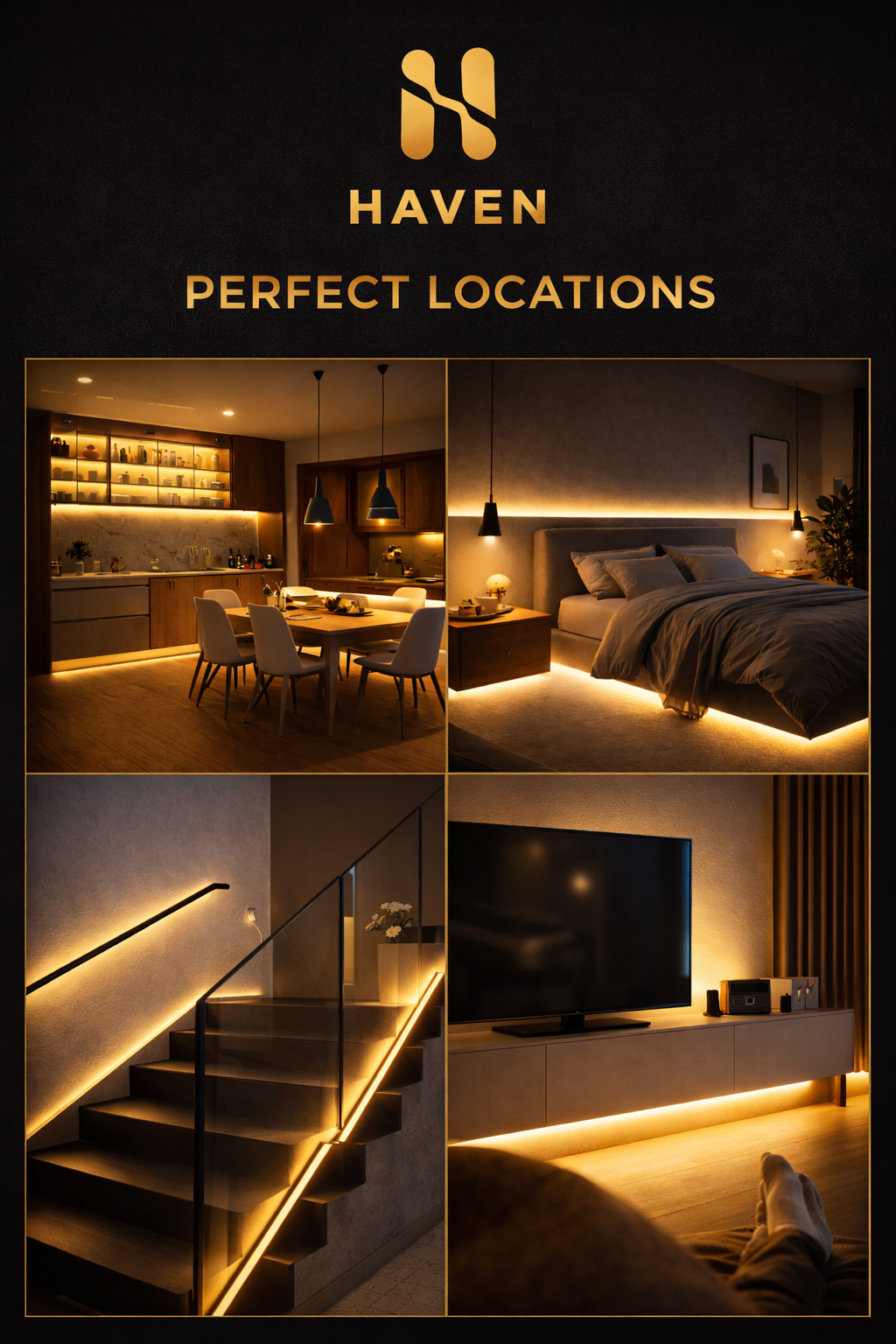

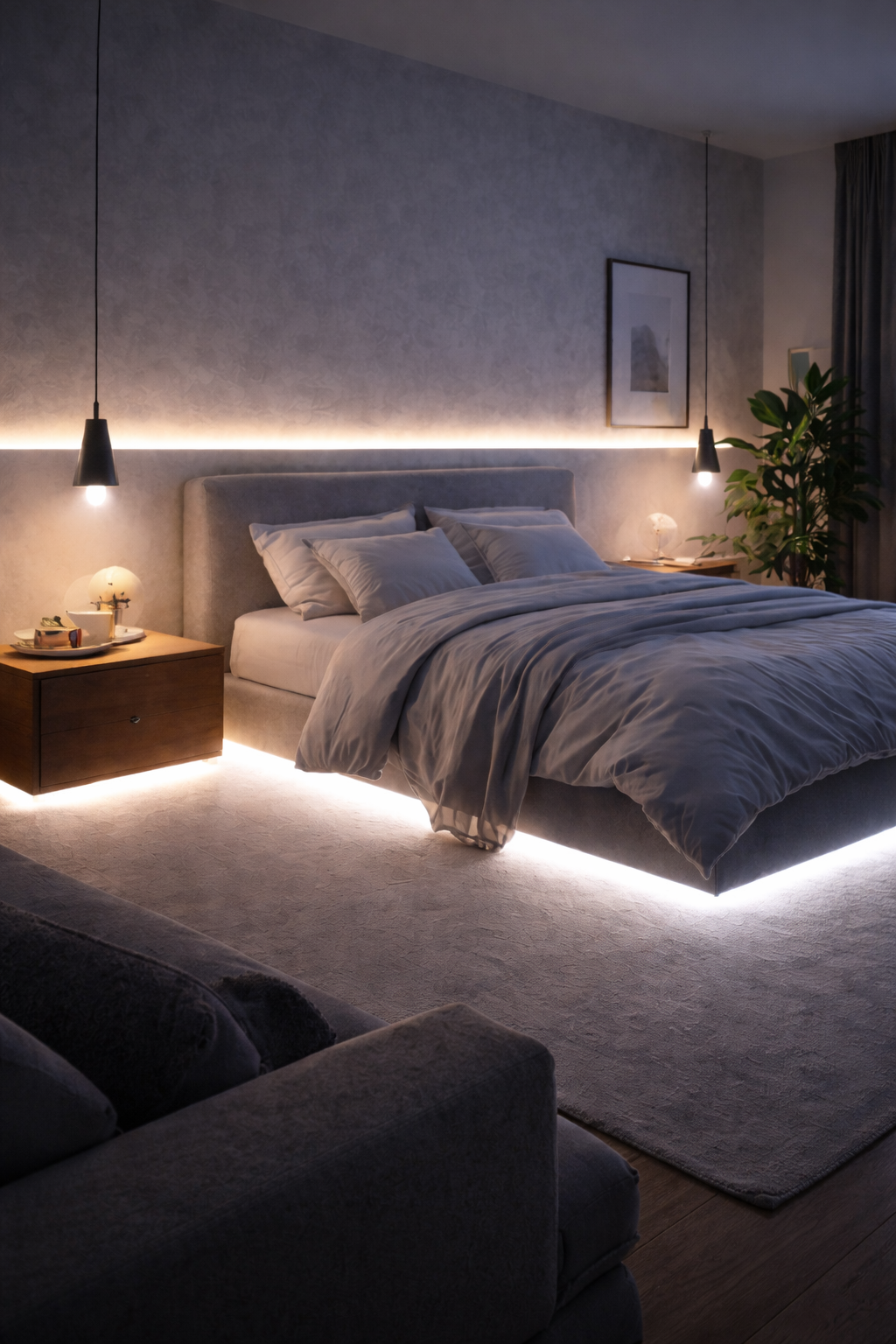

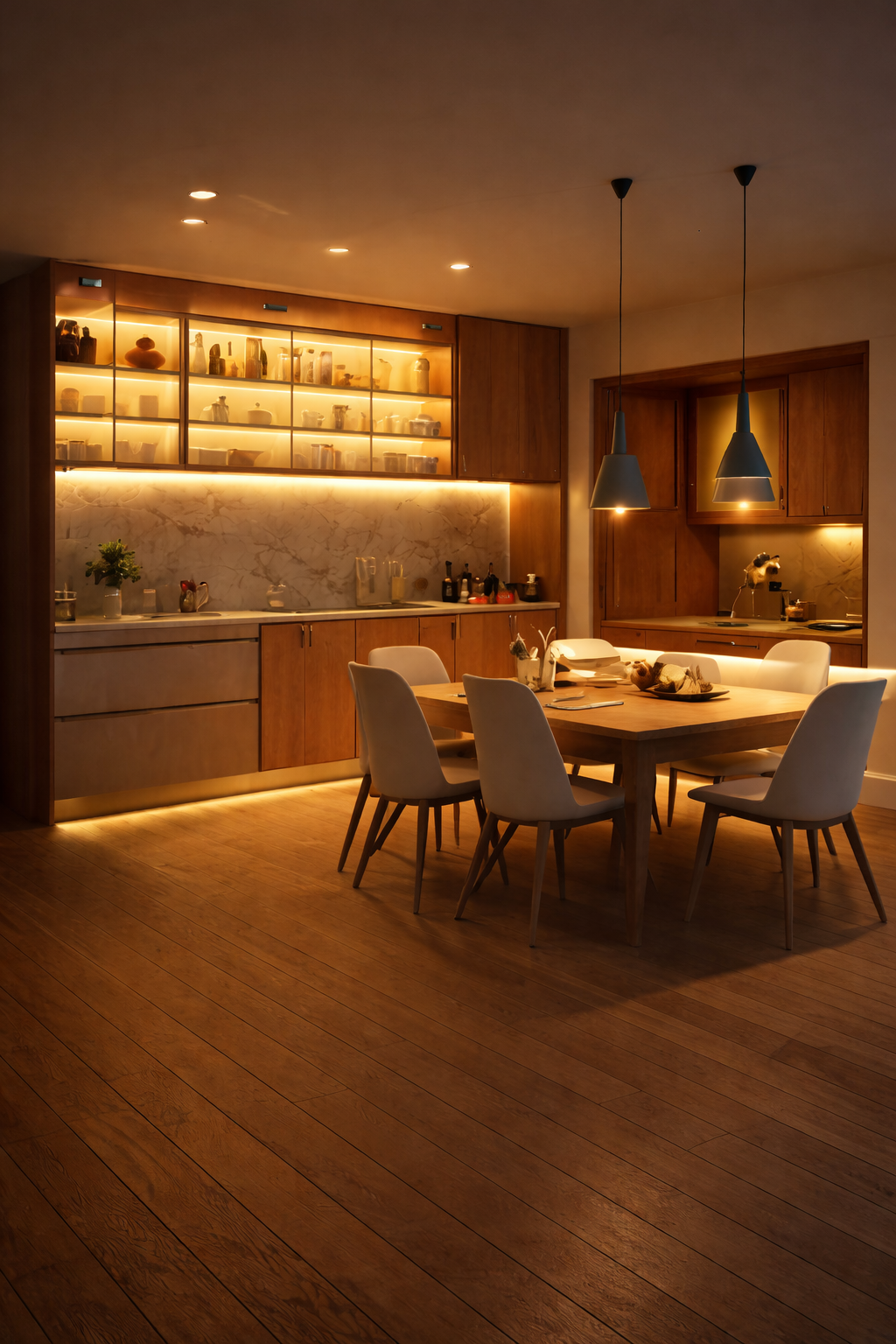

Designed for architectural accents and ambient lighting, its slim 8mm profile and flexible construction make it ideal for bedrooms, living rooms, TV backlighting, shelving, cabinets, and modern interior details.

Key Features

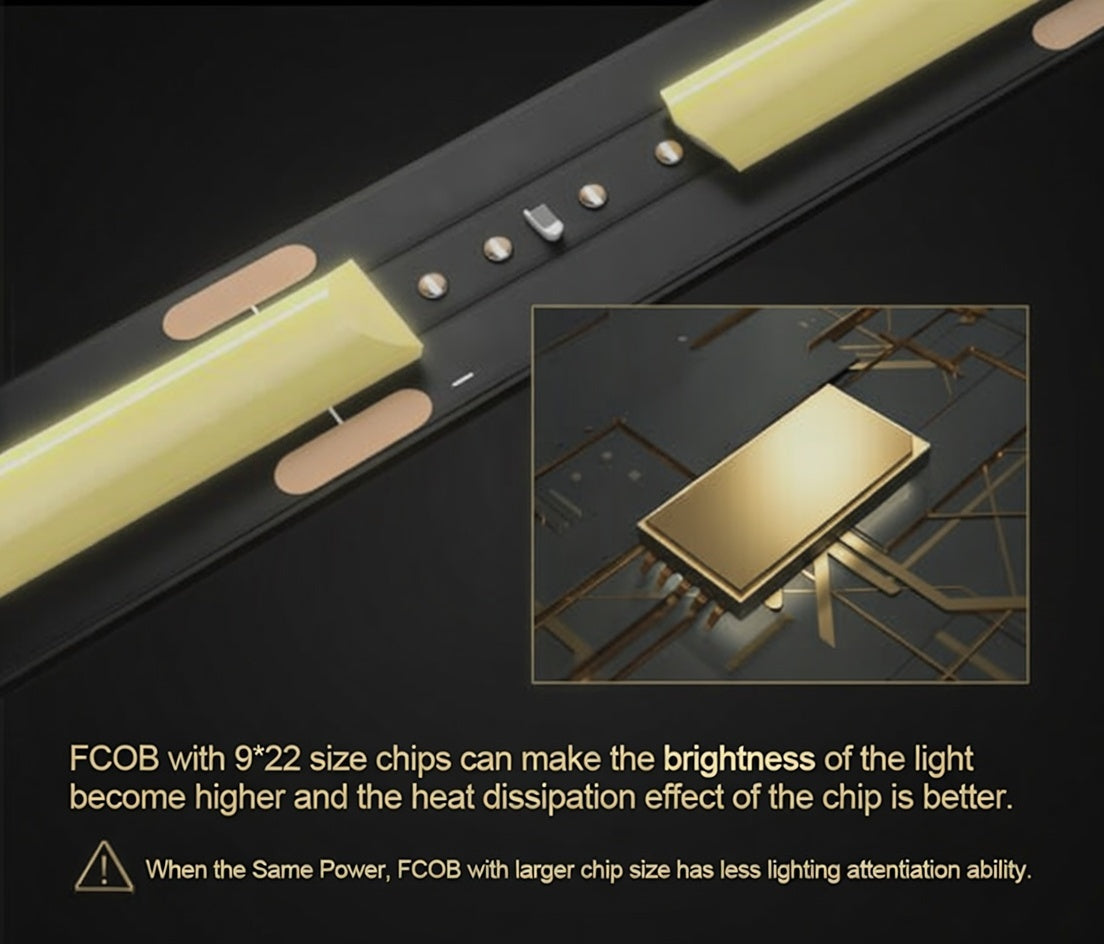

• COB (Chip On Board) Technology
  Produces a seamless, dot-free lighting effect without harsh spotting

• Two Performance Options
  Choose between different LED densities and colour accuracy to suit your needs

• High Colour Accuracy
  Natural, balanced light with accurate colour rendering (variant dependent)

• Dimmable Output
  Brightness can be adjusted using a compatible dimmer or controller (not included)

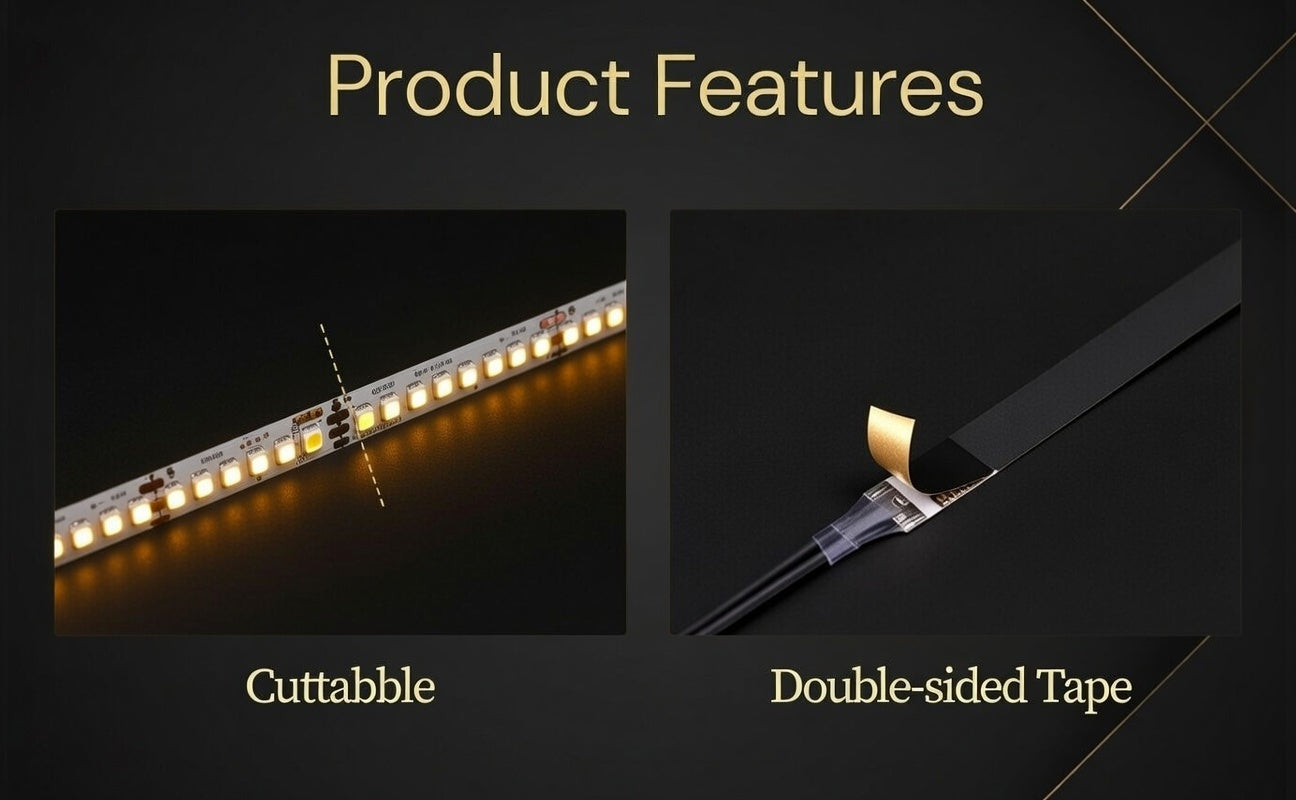

• Flexible & Cuttable Design
  Easily adapts to straight runs, corners, and custom installations

• Wide Beam Angle
  180° light distribution for smooth wall and surface illumination

LED Density & Performance Options

COB 320 LEDs/m

• Colour Rendering Index: CRI ≥80

• Brightness: approx. 900–1100 lumens per metre

• Ideal for general ambient lighting at a lower cost

COB 480 LEDs/m

• Colour Rendering Index: CRI ≥90

• Brightness: approx. 850–950 lumens per metre

• Smoother light output and more accurate colour rendering (recommended)

Colour Temperature Options

• 3000K – Warm White

• 4000K – Natural White

• 6500K – Cool White

Light output varies slightly depending on colour temperature and LED density.

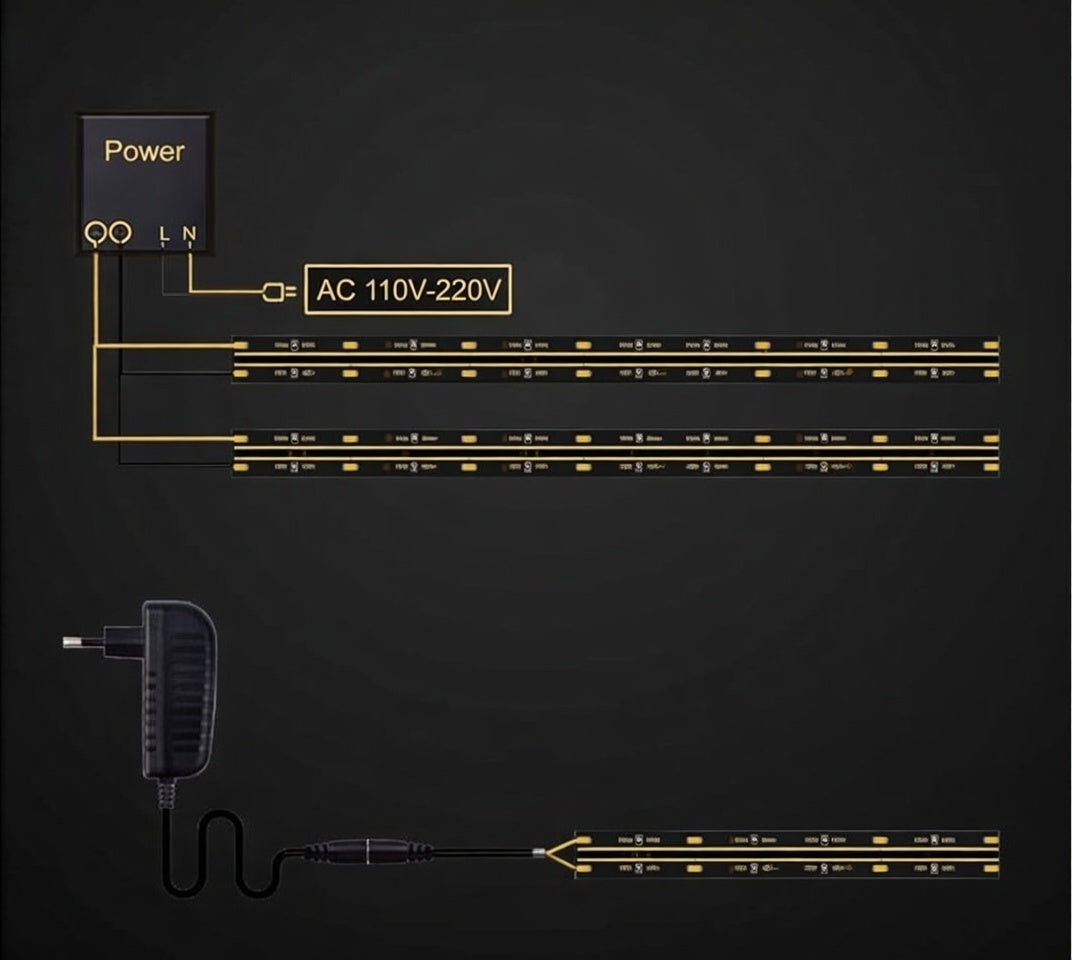

Power & How It Works (Important)

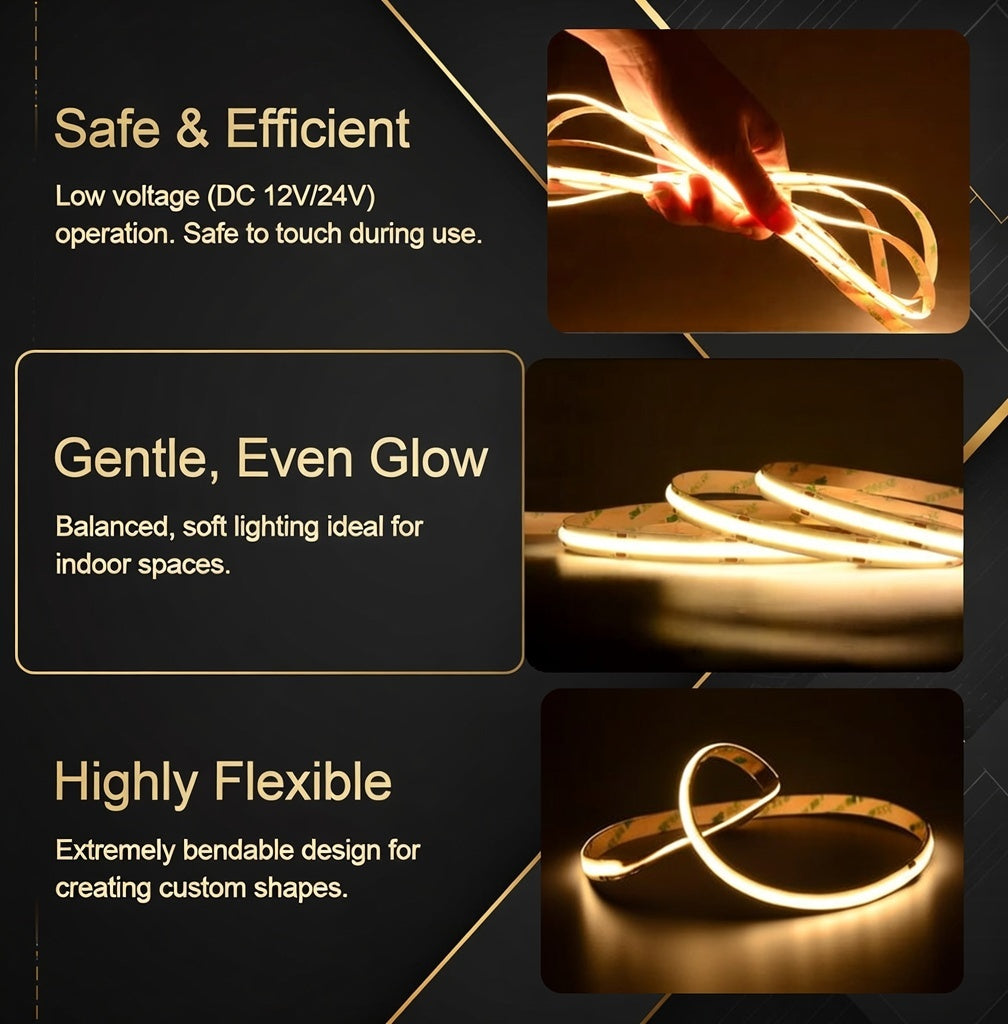

This LED strip operates on low-voltage DC power.

• Requires an external DC power supply (12V or 24V)

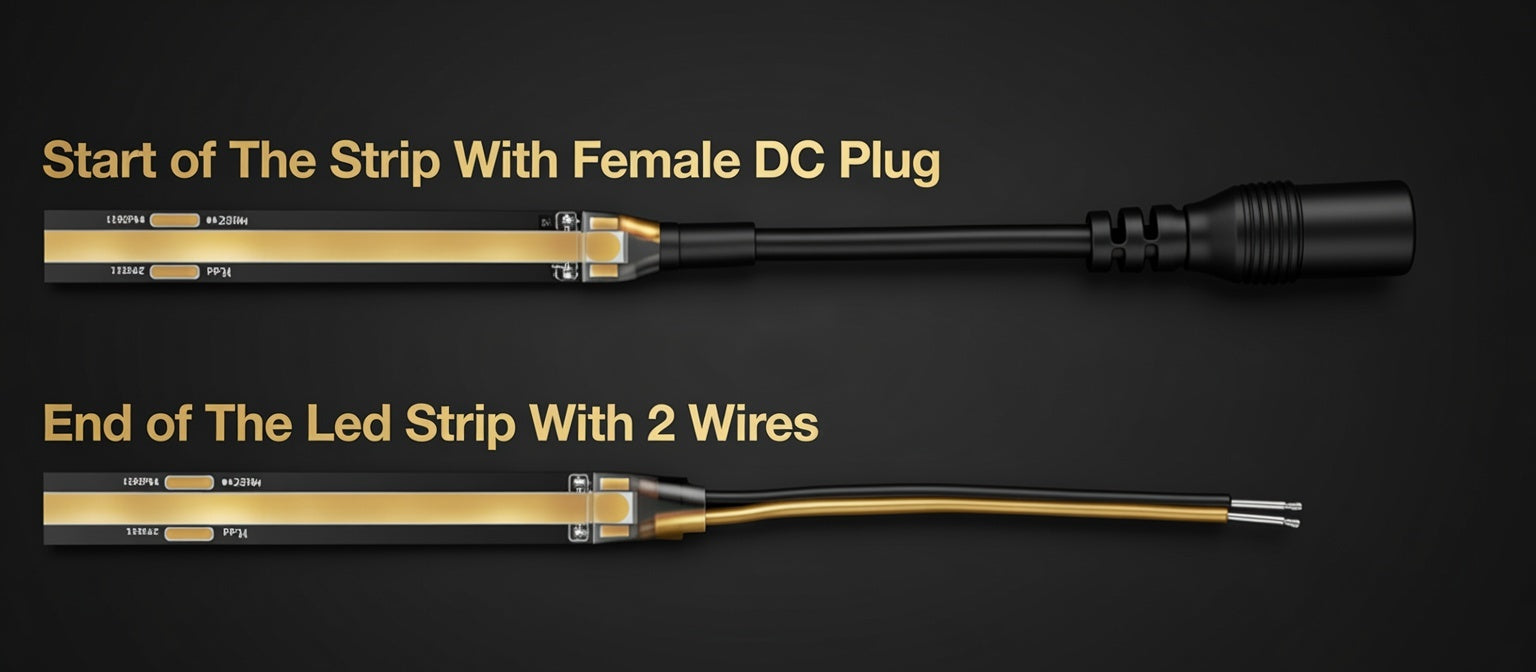

• A female DC connector is fitted at the start of the strip

• Connects to a plug-in power adapter or LED driver (sold separately)

• Not USB powered and does not plug directly into the wall

Simple Setup Instructions

1. Choose a matching DC power supply (12V or 24V, depending on the strip selected)

2. Plug the power supply into a wall socket

3. Connect the DC plug to the LED strip connector

4. The strip powers on immediately

5. Optional: add a dimmer or smart controller between the power supply and strip for control

For permanent or built-in installations, the strip can also be hard-wired using a compatible LED driver.

Technical Specifications

• Strip Type: COB LED

• LED Density: 320 or 480 LEDs per metre

• Input Voltage: DC 12V or 24V

• Power Consumption: Approx. 10W per metre

• Strip Width: 8mm

• Viewing Angle: 180°

• Lifespan: Up to 50,000 hours

• Waterproof Rating: IP20 – indoor use only

• Operating Temperature: -20°C to +45°C

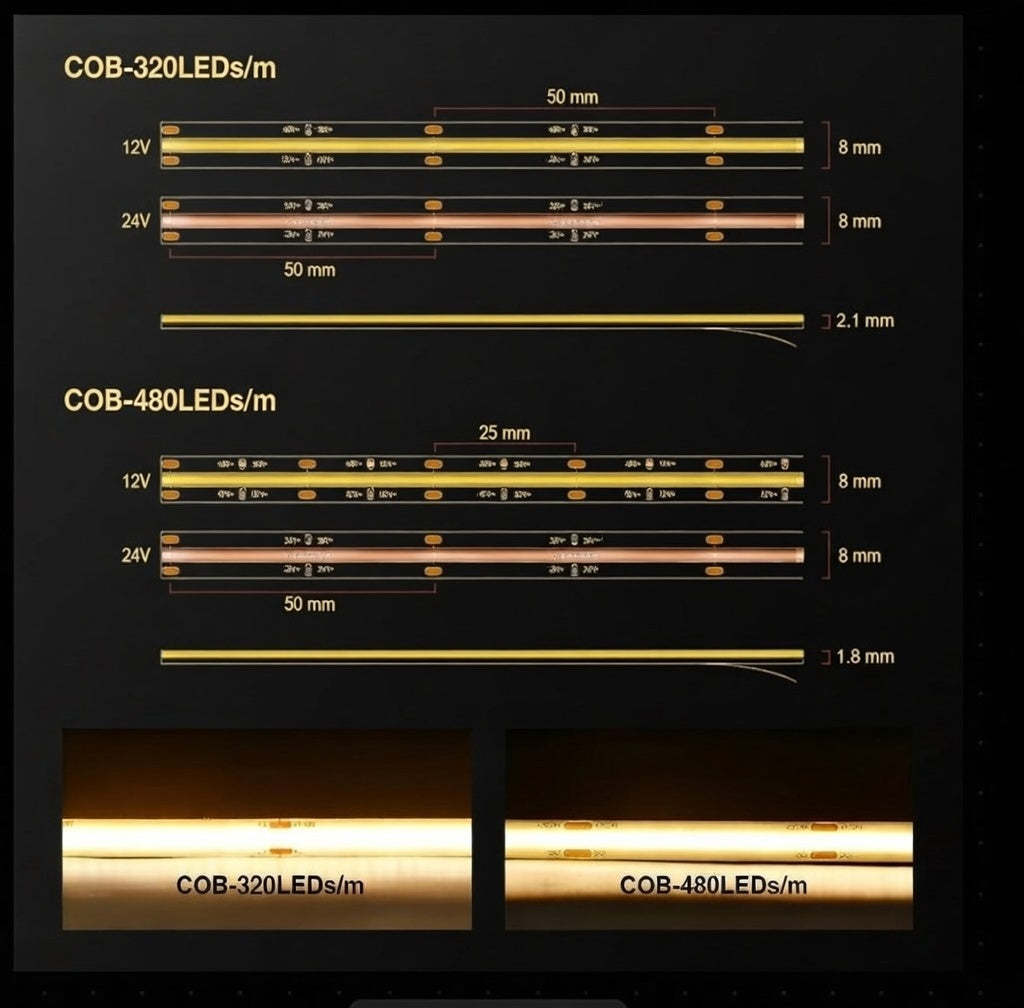

Cutting Intervals:

• 12V: Every 25mm

• 24V: Every 50mm

What’s Included

• 1 × COB LED Strip Light (1m–5m, selected length)

Not included:
Power supply, dimmer, or controller.

Notes

• Minor voltage drop may occur over longer lengths; this is normal for low-voltage LED strips

• For best performance on longer runs, ensure adequate power capacity or power injection where required
